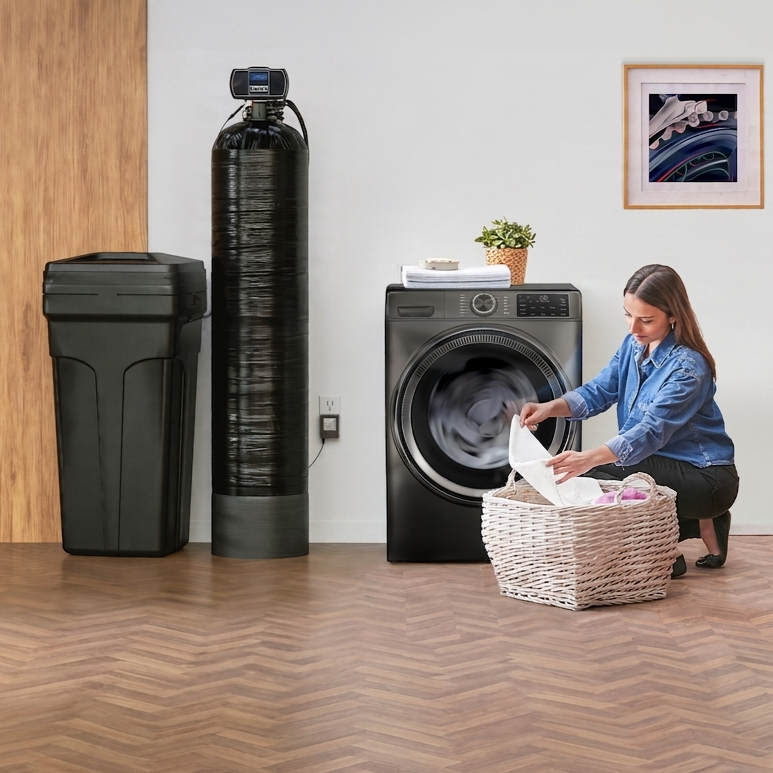

The Harmony Water Softener is a salt-based system designed to remove hardness minerals from your water. It reduces calcium and magnesium using an ion exchange process to help prevent scale buildup and improve overall water quality throughout your home.
How the Harmony Water Softener Works
The Harmony system uses a tank filled with resin beads to soften water.
As hard water flows through the resin bed:
- Calcium and magnesium (hardness minerals) attach to the resin beads.
- Sodium (or potassium) ions are released into the water in exchange.
This process removes the minerals that cause scaling, leaving your water “soft.”
Soft water helps protect plumbing, appliances, and fixtures from mineral buildup.
Why Soft Water Matters
Hard water can cause a range of household issues, including:
- Scale buildup in pipes, faucets, and appliances
- Reduced appliance efficiency and higher energy costs
- Soap scum on sinks, showers, and bathtubs
- Dry skin and dull hair caused by mineral residue
By removing hardness minerals, the Harmony system helps extend appliance life, improve cleaning performance, and reduce soap and detergent usage.
Resin and Regeneration
Over time, the resin beads become saturated with hardness minerals and must be cleaned. This cleaning process is called regeneration.
During regeneration, the system goes through several stages:
- Backwash: Reverses water flow to remove debris from the resin bed.
- Brine Draw: Saltwater (brine) flows through the resin tank to remove hardness minerals and recharge the resin.
- Rapid Rinse: Flushes remaining minerals and excess salt to the drain.
- Brine Fill: Refills the brine tank with water to prepare for the next cycle.
After regeneration, the resin is restored and ready to soften water again.
How Often Regeneration Occurs
Regeneration frequency depends on:
- Household water usage
- Water hardness level
- System size
Harmony systems use a metered control valve that tracks water usage and regenerates only when the programmed gallon limit is reached. This helps improve efficiency compared to older timer-based systems.
In many homes, regeneration occurs approximately every 14–28 days, though actual frequency varies.
Drain Line and Brine Line Overview
The Harmony system includes two primary connection lines that support regeneration: the drain line and the brine line.
Drain Line (Orange Clip)
The drain line carries wastewater from regeneration to a nearby drain.
- Can run long distances, but runs over 20 feet should be increased from ½-inch to ¾-inch tubing.
- Cannot discharge more than 7 feet upward.
- Approximately 60–80 gallons of water are discharged during regeneration.
Proper drain line routing helps ensure safe and effective discharge during each regeneration cycle.
Brine Line (Blue Clip)
The brine line connects the brine tank float assembly to the control valve.
- The line can be shortened if necessary, though this is not typically recommended.
- It allows brine to flow into the resin tank during regeneration.
Maintaining a properly connected brine line ensures the system can regenerate correctly and continue producing soft water.
