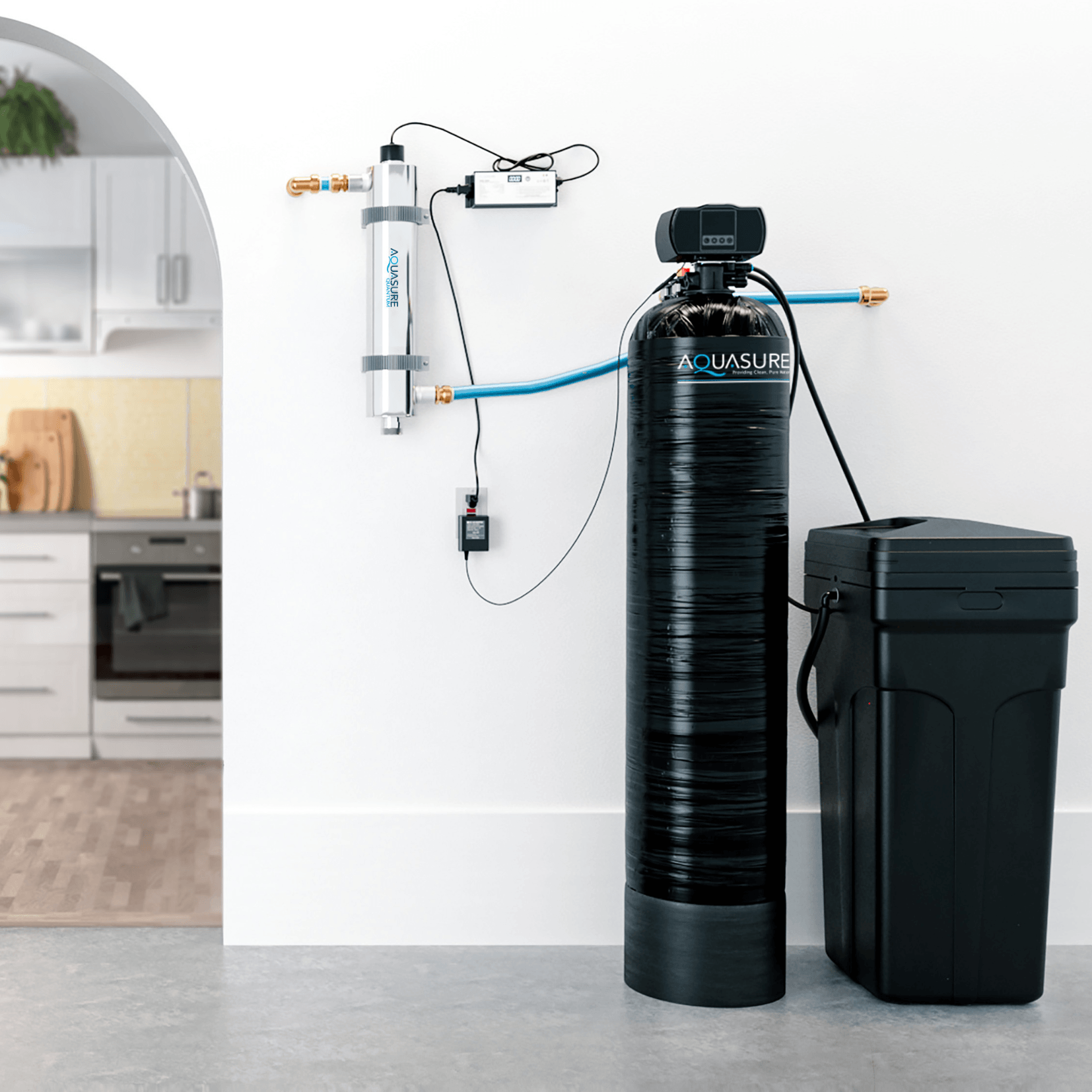

The Quantum Series UV system uses ultraviolet light as part of a whole-home water treatment setup for microbiological concerns. It provides chemical-free UV treatment without adding chlorine or other disinfectants to the water.
UV treatment is often used alongside other filtration systems because it does not remove sediment, heavy metals, chemicals, or hardness minerals.
What Is UV Water Treatment?
Ultraviolet (UV) water treatment uses UV-C light to affect microorganisms by damaging their DNA. This helps prevent microorganisms from reproducing when the system is installed, operated, and maintained properly.
UV treatment is a chemical-free process. It does not add chlorine or other disinfectants to the water.
How the Quantum Series UV System Works
The Quantum Series UV system is designed for water treatment applications where microbiological concerns may be present, such as coliform or E. coli.
The system works by:
- Exposing flowing water to UV-C light inside a sealed chamber
- Using a 254 nanometer wavelength UV lamp as part of the treatment process
- Exposing microorganisms to UV light as water passes through the UV chamber
For proper operation, water must be clear and free of debris so the UV light can effectively pass through the water.
What the Quantum Series UV System Doesn’t Do
UV treatment is often used alongside other filtration systems. It is important to understand its role within a treatment setup.
The UV system does not:
- Remove sediment
- Remove heavy metals
- Remove chemicals
- Soften water
Additional filtration, such as sediment or carbon filters, may be required depending on water conditions.
How the Quantum Series UV System Is Built
The Quantum Series UV system includes several core components that work together as part of the UV treatment process.
Key components include:
- UV chamber
- UV lamp
- Quartz sleeve
- Ballast
- Mounting hardware
The UV lamp sits inside the quartz sleeve, which keeps the lamp protected from water while allowing UV light to pass through the chamber. The ballast supplies power to the lamp during operation.
